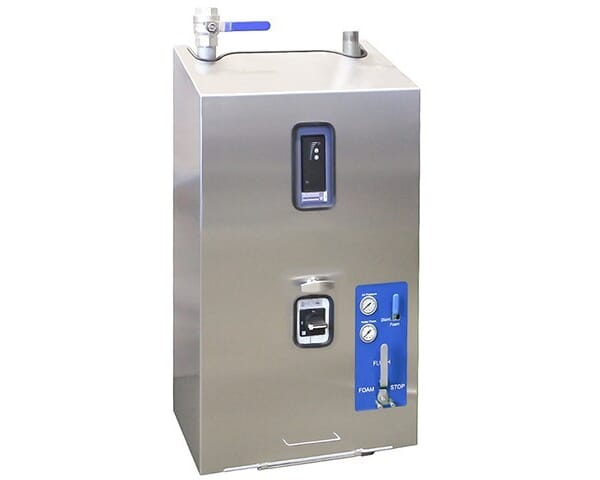

The SatelliteCenter Freq. is compact and designed for easy use and service. It is for sites that require cleaning by medium pressure. It has a build in frequency controller for soft start and stop.
Basically it is very simple to use. When there is a demand for water, it automatically starts activated by a flow switch. When there is no more need for water, it automatically stops.
It has a build in injector and supports up to two or three users depending on the nozzles used.
From medio 2017, only the new IE5/red pumps is available
Up to 2-3 operators flushing at the same time.
Capacity:
Flushing:60 l/min
Foaming:8 l/min
Disinfection:9 l/min
Consumption:
Voltage:3x400 VAC
Power:3,0 kW (IE5)
Air at 6 bar:150 l/min
Dosing range:
Injector
Min/max:1-6 %
Operating parameters:
Feed press:2,5-8 bar
Temp. range:5-70°C
Temp. Max:85°C
Weight:
Net:105 kg
