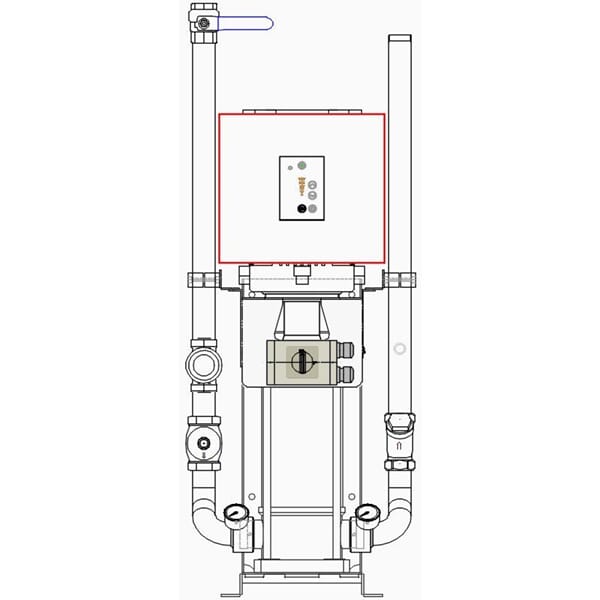

The PumpSet IE5 provides boosted water pressure to Injectors, Satellites etc.
It has a built in flow switch for automatic 100% performance when there is a demand for water. When no more water is needed, it automatically stops.
The builtin frequency control makes the pump start and stop very smootely.
As standard a High Temperature guard is built in.
Optional Cover: 89708.
Capacity:
120 l/min:20 bar boost
210 l/min:16 bar boost
Consumption:
Volt:400 VAC
Frequency:50/60 Hz
Power:7,5 kW (IE5)
Operating parameters:
Feed press:2-5 bar
Temp. max:70°C
Weight:
Net:135 kg
