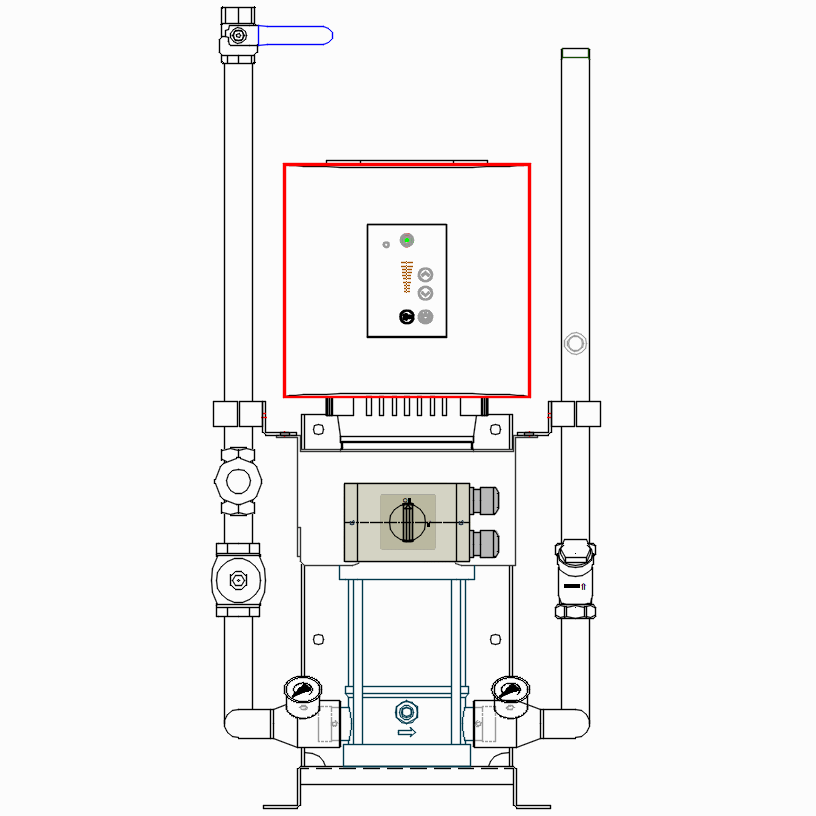

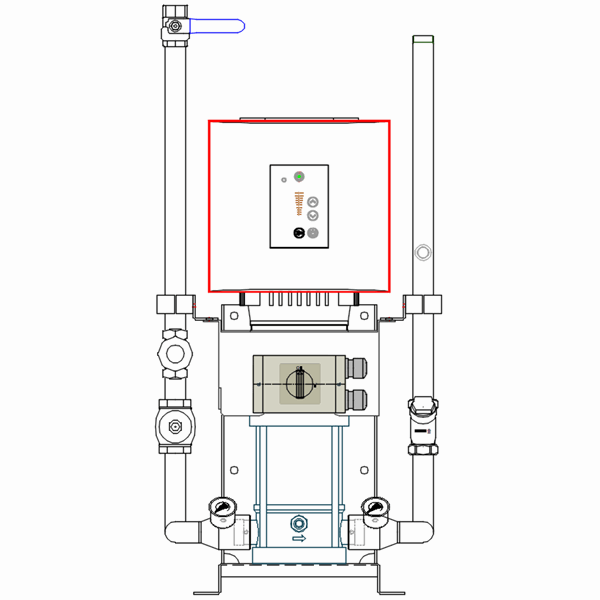

The PumpSet IE5 provides boosted water pressure to Injectors etc.
It has a built in Flow Switch for automatic 100% performance when there is a demand for water. When no more water is needed, it automatically stops.
The frequency control makes the pump start and stop very smootely.
Optional Cover: 89706.
Capacity:
30 l/min:19 bar
60 l/min:16 bar
Consumption:
Voltage:3x400 VAC
Freq:50/60 Hz
Power:3 kW (IE5)
Operating parameters:
Feed pressure:2,5-5 bar
Max. temp:70°C
Weight:
Approx:95 kg
