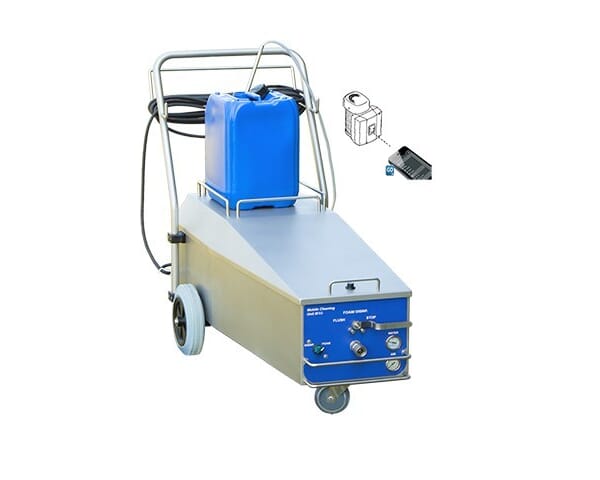

The Mobile Cleaning M60a is for manually controlled cleaning with rinsing, foaming and disinfection. The Frequency controlled pump motor is powerfull enough for 2 operators flushing at the same time. It has a built in compressor for air supply.
The compressor stops automatically when you are flushing.
From medio 2017, only the new IE5/red pump is available.
It has built in an injector for chemical dosing.
Other versions of the unit is available. Eg. two chemical inlets, External air supply (no compressor) or as a plain mobile PumpSet.
Capacity:
Boosting press:20bar
Flushing nom:30 l/min
Flushing Double:60 l/min
Flushing max:70 l/min
Foaming:8 l/min
Disinf:9 l/min
Consumption:
Voltage:3x400 VAC
Freqency:50/60 Hz
Power:4,0 kW (IE5)
Dosing range:
Orifice nozz:1-6 %
Operating parameters:
Feed press:2,5-7 bar
Temp. max:70°C
Weight:
Net:116 kg
