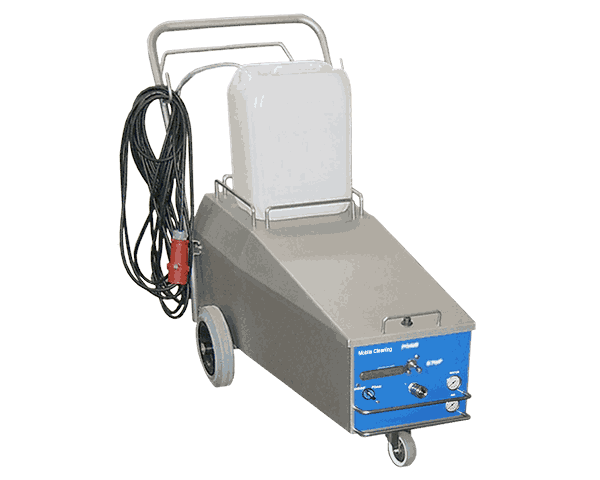

Mobile Cleaning M55a
The Mobile Cleaning M55a is for manually controlled cleaning with rinsing, foaming and disinfection.
It has a built in compressor for air supply.
The compressor stops automatically when you are flushing.
It has built in an injector for chemical dosing.
Other versions of the M55 is available. Eg. two chemical inlets, external air supply (no compressor) or as a plain mobile PumpSet.
Capacity:
Boosting press:15bar
Flushing nom:30 l/min
Flushing max:50 l/min
Foaming:8 l/min
Disinf:9 l/min
Consumption:
Voltage:3x400 VAC
Freqency:50 Hz
Freq. optional:60 Hz
Power:3,5 kW
Dosing range:
Orifice nozz:1-6 %
Operating parameters:
Feed press:2,5-5 bar
Temp. max:65°C
Weight:
Net:115 kg
