Non-Return valve in water inlet. Corrosion resistant Stainless Steel/Plastic.

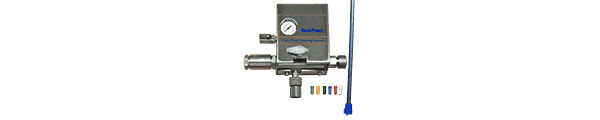

The HP Injector is a wall mounted compact, simple solid design device for applications that require foam and flushing.
It is capable of producing a dry dense foam or by adjusting the air pressure, a wetter dense foam.
Capacity:
Flushing:30 l/min
Foaming/Disinf:10 l/min
Consumption:
Air at 8 bar:150 l/min
Dosing range:
Orifice nozzles:1-6%
Operating parameters:
Pressure:50-150 bar
Temp. Injector:70°C
Weight:
Net:8 kg
