Includes FILTER and NON-RETURN valve in water inlet Corrosion resistant. Stainless Steel/Plastic.

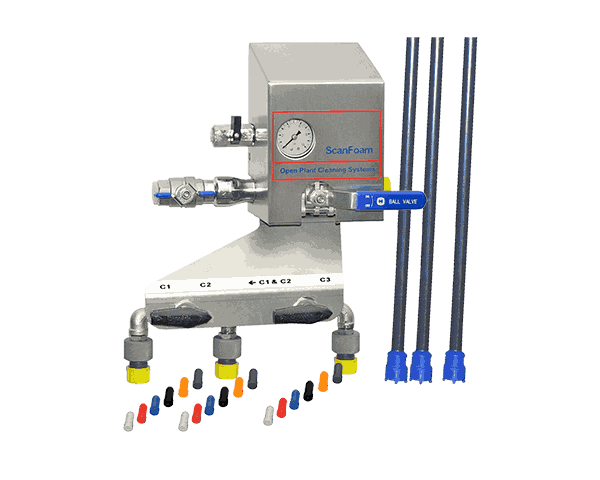

The LP Injector is a wall mounted compact, simple solid design device for applications that require foam cleaning.
It is capable of producing a dry dense foam or by adjusting the air pressure, a wetter dense foam.
Proposal for accessories: See Injector 88028 3-10 1P
Capacity:
Flushing (5bar):17 l/min
Foaming (5bar):7 l/min
Consumption:
Air at 6 bar:150 l/min
Dosing range:
Percentage:1-6%
Operating parameters:
Pressure:3-10 bar
Max. Temp:
Injector:70°C
Hose:55°C
Weight:
Weight 3P:7 kg
