Includes FILTER and NON-RETURN valve in water inlet Corrosion resistant. Stainless Steel/Plastic.

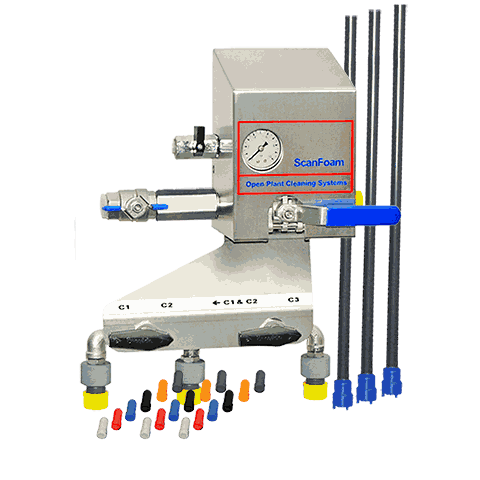

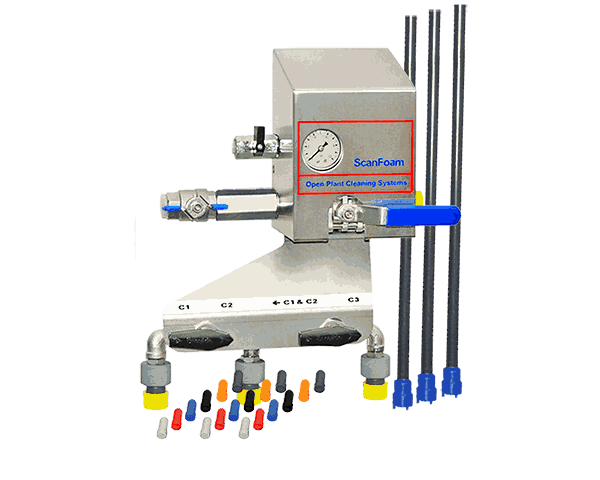

The MP Injector is a wall mounted compact, simple solid design device for applications that require foam and flushing.
It is capable of producing a dry dense foam or by adjusting the air pressure, a wetter dense foam.
Recomended accessories:
See injector 88000 MP 10-50 1P
Capacity:
Flushing:30 l/min
Foaming:10 l/min
Disinfect:12 l/min
Consumption:
Air at 6 bar:150 l/min
Dosing range:
Orifice nozzles:1-6%
Operating parameters:
Pressure:10-50 bar
Temp. Injector:70°C
Weight:
Net:7 kg
